Sending Commands from a JNIOR to a Device using Inputs in Cinema October 6, 2020

As long as the device you are sending to can create TCP or serial connections, the JNIOR should be able to send commands to it.

If you are starting from scratch with a JNIOR, you’ll want to download the JNIOR Support Tool. This application allows you to update JNIOR’s with INTEG software that you’ll need to let you send the text command.

Once you’ve downloaded the JNIOR Support Tool, you’ll need to download two update projects from our site and update them to your JNIOR. The first update project is the Series 4 All-In-One update project. Its recommended for any new Series 4 JNIOR, as the update project gives JNIORs the most recent OS, along with some basic applications. The second update project is the Cinema update project. This is the application you’ll use to execute a macro, which will send a command from the JNIOR to a device.

To update your JNIOR with an update project, here is a link to a post on our site that shows how to install Cinema. NOTE: Though the post shows how to install Cinema, its recommended you install the Series 4 All-In-One first, using the steps in that post.

Once the update projects have been published to your JNIOR, we’ll now need to create a device in the support tool to send to. In the support tool, you’ll go to the device tab and select add. You can select the device and rename it. After that you’ll now configure the settings of the device so we can send macros to it. To start you’ll select your device type, and if you see the device you want to send to there you’ll select it. If not you’ll select Raw Ethernet for a TCP connection or Raw Serial for a serial connection. You’ll then set the rest of the device configuration according to the device’s TCP or serial settings.

Once you finish setting the device information, you’ll then want to save the device file by clicking the Save As button. After that you’ll then publish the file to the JNIOR you are using by clicking the Publish to JNIOR button.

After you’ve done that, we’ll now create the macro that will be sent to the audio processor that will contain the text command. Going back to the support tool, you’ll go to the macro tab.

The first thing we’ll want to do here is click the “Link Devices” button at the top. Here we’ll select the device file we just created, so we can reference it in our action for the macro we are going to create.

After completing that, at the bottom left corner of the macro view and you’ll select add/macro. A new macro should populate the macro view, and you can then click on it and rename it. I’m going to name it ExampleMacro.

Once you’ve done that you’ll now go to the action view and select the add button there. A new action should appear in the action view. You can rename this if you’d like, and then we’ll want to select the device we previously created in the Support Tool to send to. Lastly, in the data field you’ll want to enter the text command you wish to send to the device. If you are using a Raw Serial/Raw Ethernet device, make sure you include the termination string at the end of your text command for the device you are sending to.

Once that is finished, make sure you add the action we created to the macro we created. You do this by selecting the macro, then the action, followed by the arrow between the macro and action view.

Lastly, like we did with the device file, we’ll save this using the Save As button, followed by publishing it to the correct JNIOR using the Publish to JNIOR button.

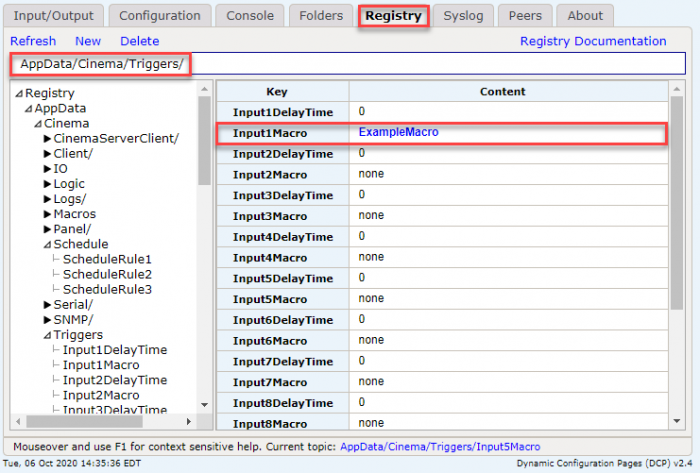

Now that the JNIOR has a macro we created that will send the text command to your specified device, now all we need to do is configure the JNIOR so that it will send this macro when DIN1 goes ON. First thing we’ll want to do is go to the JNIOR Web UI by selecting the JNIOR in the beacon tab of the support tool. There you’ll right click it, and go to tools/open web page. Once on the JNIOR web page, you’ll go to the registry tab. On the registry tab, you’ll select AppData/Cinema/Triggers. Once there, you’ll go to Input1Macro and enter the name of the macro we created in the support tool. We named it ExampleMacro, but if you named it something different you’ll enter that name here. This should set the JNIOR so that when DIN1 on the JNIOR goes ON, the macro will activate.
